FILT’RAY Compact 4-month tap and wall-mounted shower head filter
Ref. AT30450
Non-sterile
Non-sterile
DESCRIPTION

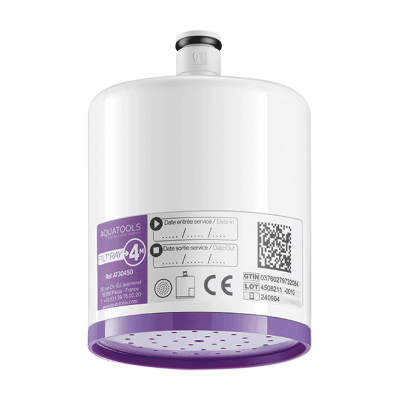

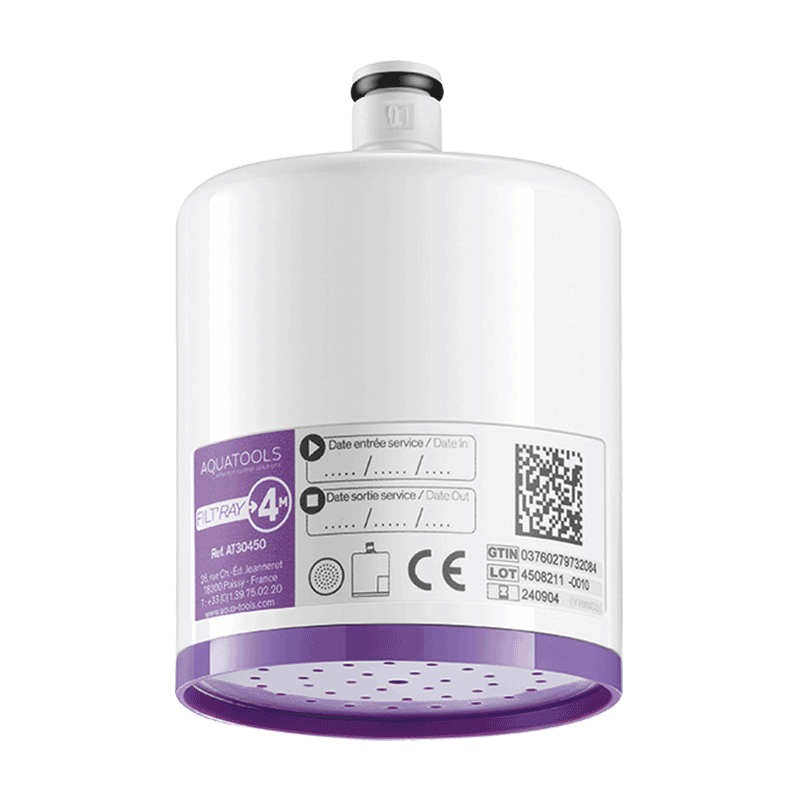

FILT’RAY Compact 4-month tap and wall-mounted shower head filter
Ref. AT30450AQUATOOLS anti-Legionella and all-germ tap and wall-mounted shower filter, shower spray.
Device made from ABS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 12,000 litres.
Filtration flow rate: 4.6 lpm at 1 bar, 7.6 lpm at 3 bar and 9.4 lpm at 5 bar
(filter only, excludes any flow rate restriction in the tap).

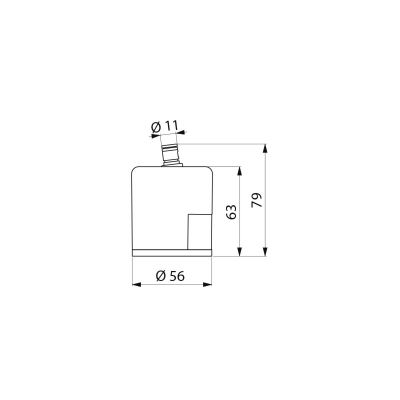

Space saving, suitable for taps with a low spout height: H. 63mm, Ø 56mm.
Controlled management of retro-contamination: protective skirt and angled connector for optimal positioning (filter position can be adjusted so the water does not flow directly on to the waste).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 4 months after installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm for 4 hours (cumulative total).
Non-sterile filter.
CE Class I medical device.
Reference for a single unit. Must be ordered in multiples of 10.
Packaged in boxes of 10 units.
Device made from ABS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 12,000 litres.
Filtration flow rate: 4.6 lpm at 1 bar, 7.6 lpm at 3 bar and 9.4 lpm at 5 bar
(filter only, excludes any flow rate restriction in the tap).
Space saving, suitable for taps with a low spout height: H. 63mm, Ø 56mm.
Controlled management of retro-contamination: protective skirt and angled connector for optimal positioning (filter position can be adjusted so the water does not flow directly on to the waste).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 4 months after installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm for 4 hours (cumulative total).
Non-sterile filter.
CE Class I medical device.
Reference for a single unit. Must be ordered in multiples of 10.
Packaged in boxes of 10 units.
ADVANTAGES
![](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/8/0/8/0/3020808-11-fre-FR/Picto_AntibactВrien.png)
Anti-Legionella and all-germ
![Encombrement](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/8/0/4/2/3112408-2-fre-FR/Encombrement.png)
Space saving
![Connexion inclinée](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/1/1/4/2/3112411-1-fre-FR/Connexion-inclinée.png)
Optimised position: tilted connector
![](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/2/9/7/0/3020792-11-fre-FR/Picto_Endurance-fiabilitВ.png)
Lifespan: 4 months after installation
TECHNICAL CHARACTERISTICS
FILT’RAY Compact 4-month tap and wall-mounted shower head filter
Ref. AT30450Technology | Point-of-use filtration |
Height | 63mm |
Flow rate | 4.6 lpm at 1 bar, 7.6 lpm at 3 bar and 9.4 lpm at 5 bar |
Diameter | 56mm |
Lifespan | 4 months |
Certificates |
![]() ![]() ![]() ![]() |
