FILT’RAY 2-month tap and wall shower filter

Ref. AT30250
Non-sterile
FILT’RAY 2-month tap and wall shower filter

Presentation

DESCRIPTION

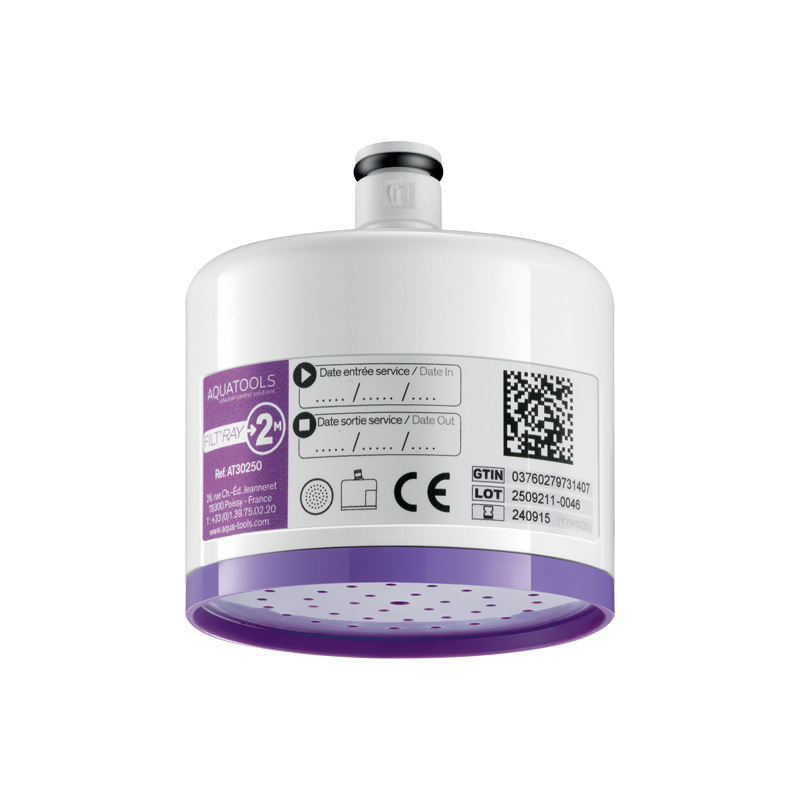

FILT’RAY 2-month tap and wall shower filter

Ref. AT30250
AQUATOOLS anti-Legionella and all-germ tap and wall-mounted shower filter, shower spray.
Device made from ABS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 6,000 litres.
Filtration flow rate: 3 lpm at 1 bar, 5.5 lpm at 3 bar and 7.4 lpm at 5 bar
(filter only, excludes any flow rate restriction in the tap).
Space saving, suitable for taps with a low spout height: H. 44mm, Ø 46mm.
Controlled management of retro-contamination: protective skirt and angled connector for optimal positioning (filter position can be adjusted so the water does not flow directly on to the waste).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 2 months after installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm for 2 hours (cumulative total).
Non-sterile filter.
Reference for a single unit. Must be ordered in multiples of 10.
Packaged in boxes of 10 units.

ADVANTAGES

Anti-Legionella and all-germ

Encombrement

Space saving

Connexion inclinée

Optimised positioning: tilted connector

Lifespan: 2 months after installation

Characteristics

TECHNICAL CHARACTERISTICS

FILT’RAY 2-month tap and wall shower filter

Ref. AT30250
Technology Point-of-use filtration
Height 44mm
Flow rate 3 lpm at 1 bar, 5.5 lpm at 3 bar and 7.4 lpm at 5 bar
Diameter 56mm
Lifespan 2 months
Certificates ACS Logo CE Logo WRAS KTW-BWGL

Downloads

DOWNLOADS

FILT’RAY 2-month tap and wall shower filter

Ref. AT30250

To download one or several documents linked to this product, please select the type of file you require :
