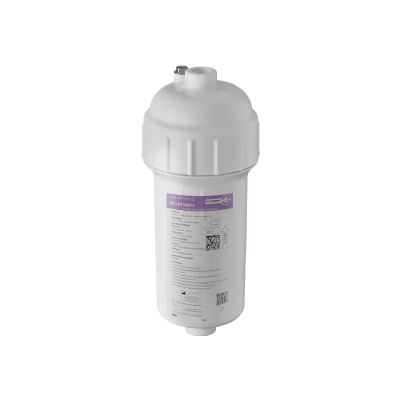

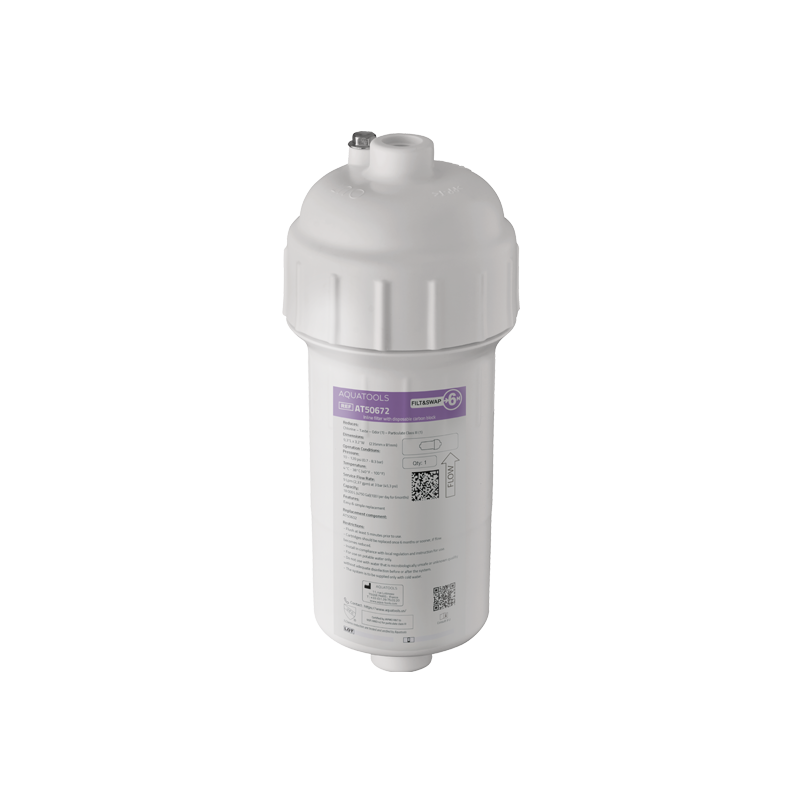

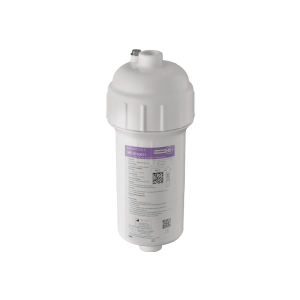

FILT&SWAP inline filter

Ref. AT50672
Active charcoal
See variants See variants
FILT&SWAP inline filter

Presentation

DESCRIPTION

FILT&SWAP inline filter

Ref. AT50672
FILT&SWAP active charcoal inline filter.
Active charcoal: reduces taste, smell and chlorine in water.
Filter cartridge can be replaced without changing the filter body.
Capacity: 18,000L.
Maximum lifespan: 6 months.
Filtration flow rate: 9 lpm (with integrated flow restrictor), 14 lpm (without flow restrictor) at 3 bar.
Materials: Body and filtration cartridge made of polypropylene. Filter cartridge plastic components made of ABS.
Temperature: 4 - 38°C.
Operating pressure: 0.5 - 10 bar.
Connection type: Tube or G3/8".
Compatible with and resistant to chemical shocks (active chlorine levels up to 100 ppm for 1 hour (cumulative total) and thermal shocks (70°C for 30 minutes).

ADVANTAGES

6 months

Characteristics

TECHNICAL CHARACTERISTICS

FILT&SWAP inline filter

Ref. AT50672

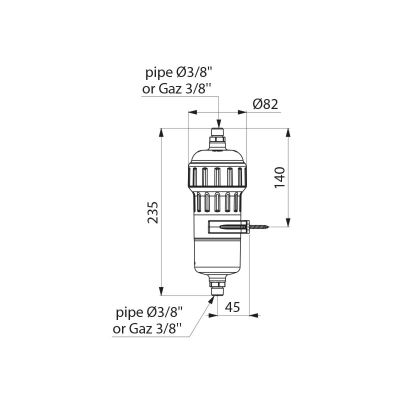

Supply Tube or G3/8"
Length 235mm
Diameter 82mm
Lifespan 6 months
Certificates WRAS

Downloads

DOWNLOADS

FILT&SWAP inline filter

Ref. AT50672

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

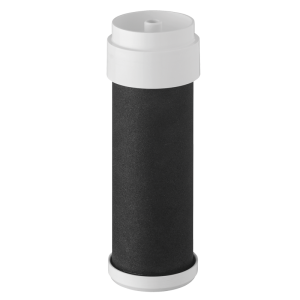

AT50602 Inline filter - Active charcoal replacement cartridge

VARIANTS

AT50602 Inline filter - Active charcoal replacement cartridge
