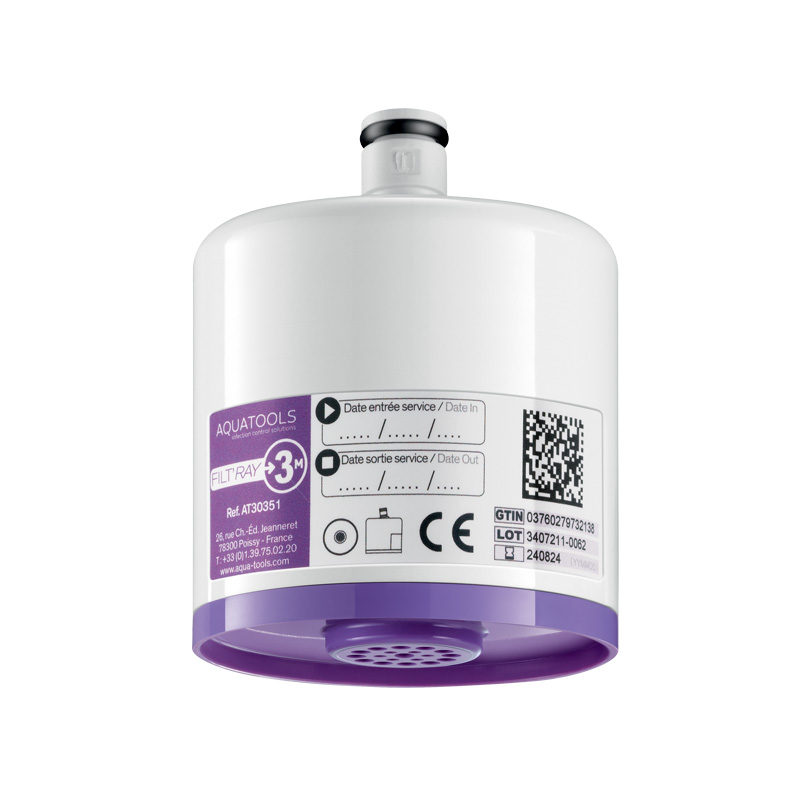

FILT’RAY Compact 3-month tap filter

Ref. AT30351
Non-sterile
FILT’RAY Compact 3-month tap filter

Presentation

DESCRIPTION

FILT’RAY Compact 3-month tap filter

Ref. AT30351
AQUATOOLS anti-Legionella and all-germ tap filter, laminar flow.
Device made from ABS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 9,000 litres.
Filtration flow rate: 4.6 lpm at 1 bar, 7.6 lpm at 3 bar and 9.4 lpm at 5 bar
(filter only, excludes any flow rate restriction in the tap).
Space saving, suitable for taps with a low spout height: H. 50mm, Ø 56mm.
Controlled management of retro-contamination: protective skirt and angled connector for optimal positioning (filter position can be adjusted so the water does not flow directly on to the waste).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 3 months after installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm for 3 hours (cumulative total).
Non-sterile filter.
CE Class I medical device.
Reference for a single unit. Must be ordered in multiples of 10.
Packaged in boxes of 10 units.

ADVANTAGES

Anti-Legionella and all-germ

Encombrement

Space saving

Connexion inclinée

Optimised position: tilted connector

Lifespan: 3 months after installation

Characteristics

TECHNICAL CHARACTERISTICS

FILT’RAY Compact 3-month tap filter

Ref. AT30351
Technology Point-of-use filtration
Height 50mm
Flow rate 4.6 lpm at 1 bar, 7.6 lpm at 3 bar and 9.4 lpm at 5 bar
Diameter 56 mm
Lifespan 3 months
Certificates ACS Logo CE Logo WRAS KTW-BWGL
