DESCRIPTION

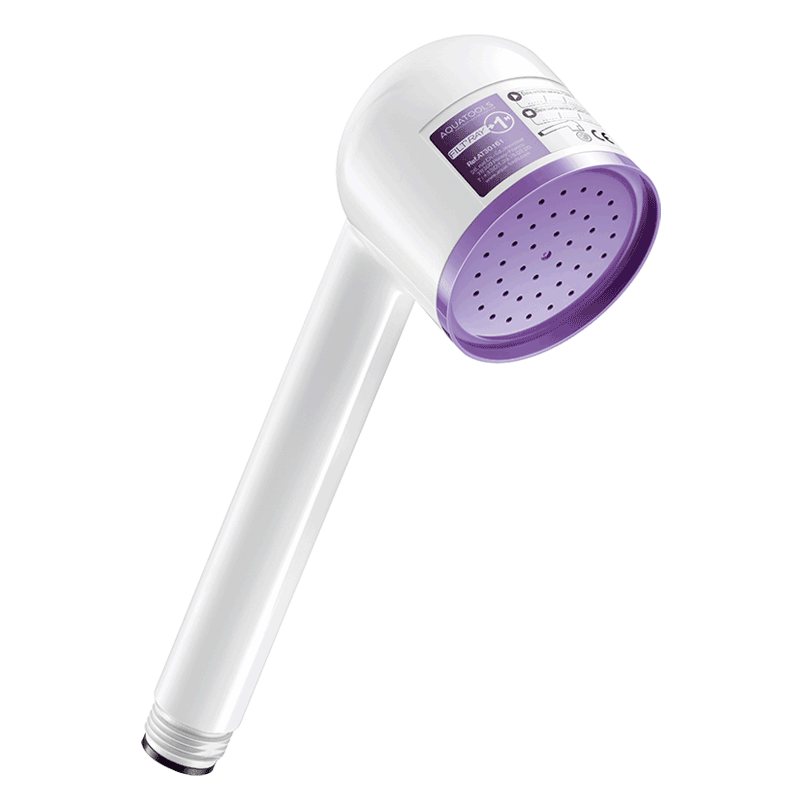

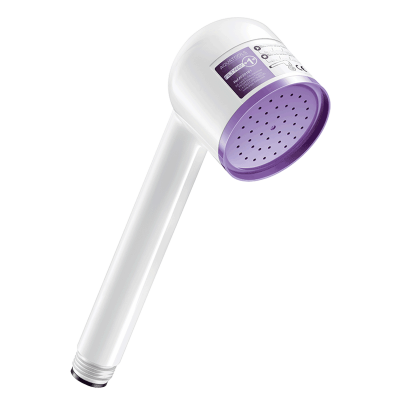

FILT’RAY Compact 1-month shower head filter
Ref. AT30161AQUATOOLS anti-Legionella and all-germ shower filter.
Device made from ABS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 3,000 litres.
Filtration flow rate: 6 lpm at 1 bar, 11.2 lpm at 3 bar and 13 lpm at 5 bar
(filter only, excludes any flow rate restriction in the shower valve).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 1 month after installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm for 1 hour (cumulative total).
Non-sterile filter.
Medical device CE Class I.
Weight: empty filter 105g / full filter 186g.
Reference for a single unit. Must be ordered in multiples of 10.
Packaged in boxes of 10 units.
Device made from ABS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 3,000 litres.
Filtration flow rate: 6 lpm at 1 bar, 11.2 lpm at 3 bar and 13 lpm at 5 bar
(filter only, excludes any flow rate restriction in the shower valve).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 1 month after installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm for 1 hour (cumulative total).
Non-sterile filter.
Medical device CE Class I.
Weight: empty filter 105g / full filter 186g.
Reference for a single unit. Must be ordered in multiples of 10.
Packaged in boxes of 10 units.
ADVANTAGES
![](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/8/0/8/0/3020808-11-fre-FR/Picto_AntibactВrien.png)
Anti-Legionella and all-germ
![Encombrement](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/8/0/4/2/3112408-2-fre-FR/Encombrement.png)
Space saving
![](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/2/9/7/0/3020792-11-fre-FR/Picto_Endurance-fiabilitВ.png)
Lifespan: 1 month after installation
![Maintenance aisée - Installation aisée](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/6/1/8/0/3020816-16-fre-FR/InstallationRapideSansOutil-WEB.png)
Quick to install without tools
TECHNICAL CHARACTERISTICS
FILT’RAY Compact 1-month shower head filter
Ref. AT30161Connector | M1/2" |
Technology | Point-of-use filtration |
Height | 62mm |
Length | 194mm |
Flow rate | 6 lpm at 1 bar, 11.2 lpm at 3 bar and 13 lpm at 5 bar |
Diameter | 56mm |
Lifespan | 1 month |
Certificates |
![]() ![]() ![]() ![]() |
VARIANTS
AT20161 | Sterile |
---|
VARIANTS
AT20161 | Sterile |
---|
