DESCRIPTION

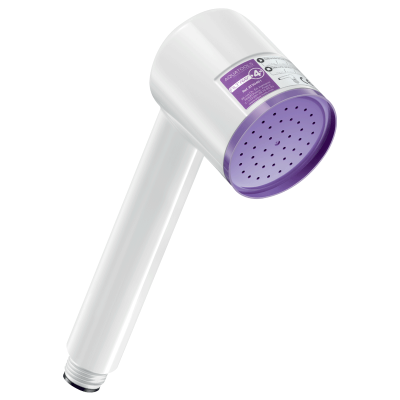

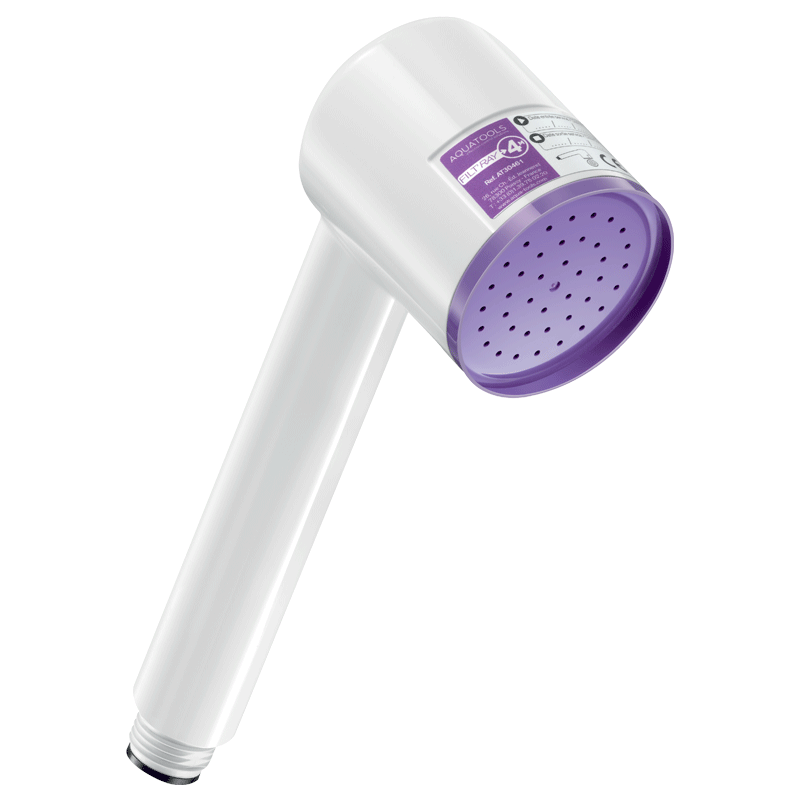

FILT’RAY Compact 4-month shower filter
Ref. AT20461AQUATOOLS anti-Legionella and all-germ shower filter.
Device made from ABS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 12,000 litres.
Filtration flow rate: 6.5 lpm at 1 bar, 11.8 lpm at 3 bar and 14.2 lpm at 5 bar.
(filter only, excludes any flow rate restriction in the shower valve).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 4 months after installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm for 4 hours (cumulative total).
Sterile filter.
CE Class I medical device.
Weight: empty filter 133g / full filter 259g.
Reference for a single unit. Must be ordered in multiples of 10.
Packaged in boxes of 10 units.
Device made from ABS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 12,000 litres.
Filtration flow rate: 6.5 lpm at 1 bar, 11.8 lpm at 3 bar and 14.2 lpm at 5 bar.
(filter only, excludes any flow rate restriction in the shower valve).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 4 months after installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm for 4 hours (cumulative total).
Sterile filter.
CE Class I medical device.
Weight: empty filter 133g / full filter 259g.
Reference for a single unit. Must be ordered in multiples of 10.
Packaged in boxes of 10 units.
ADVANTAGES
![](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/8/0/8/0/3020808-11-fre-FR/Picto_AntibactВrien.png)
Anti-legionella and all-germ
![Encombrement](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/8/0/4/2/3112408-2-fre-FR/Encombrement.png)
Space saving
![Connexion inclinée](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/1/1/4/2/3112411-1-fre-FR/Connexion-inclinée.png)
Optimised position: angled connection
![](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/2/9/7/0/3020792-11-fre-FR/Picto_Endurance-fiabilitВ.png)
Lifespan: 4 months after installation
TECHNICAL CHARACTERISTICS
FILT’RAY Compact 4-month shower filter

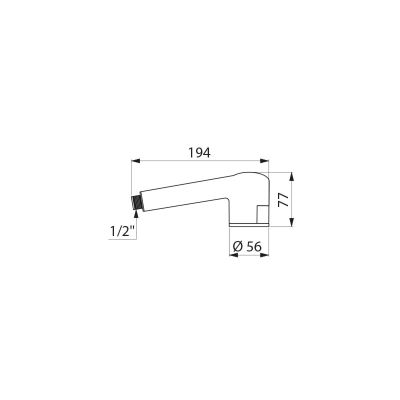

Ref. AT20461Connector | M1/2" |
Technology | Point-of-use filtration |
Height | 77mm |
Length | 194mm |
Flow rate | 6.2 lpm at 1 bar, 11.2 lpm at 3 bar and 13.2 lpm at 5 bar |
Diameter | 56mm |
Lifespan | 4 months |
Certificates |
![]() ![]() ![]() |
VARIANTS
AT30461 | Non-sterile |
---|
VARIANTS
AT30461 | Non-sterile |
---|
