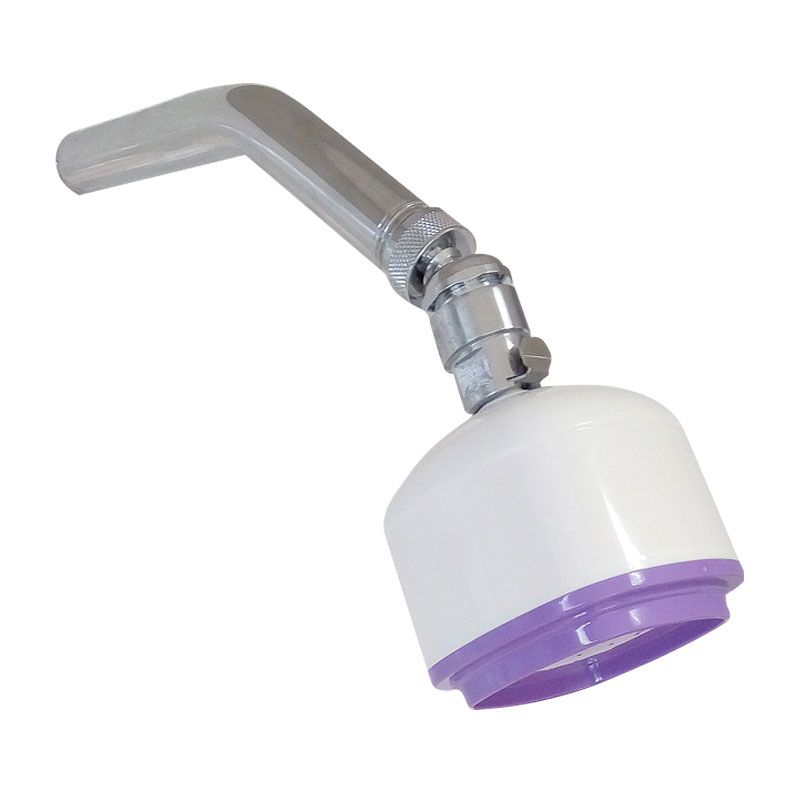

FILT’RAY wall-mounted fixed shower, 4 months

Ref. AT030742
Non-sterile
FILT’RAY wall-mounted fixed shower, 4 months

Presentation

DESCRIPTION

FILT’RAY wall-mounted fixed shower, 4 months

Ref. AT030742

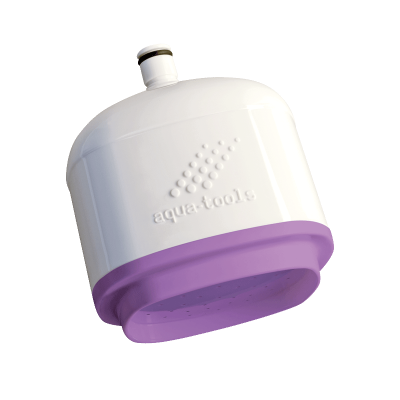

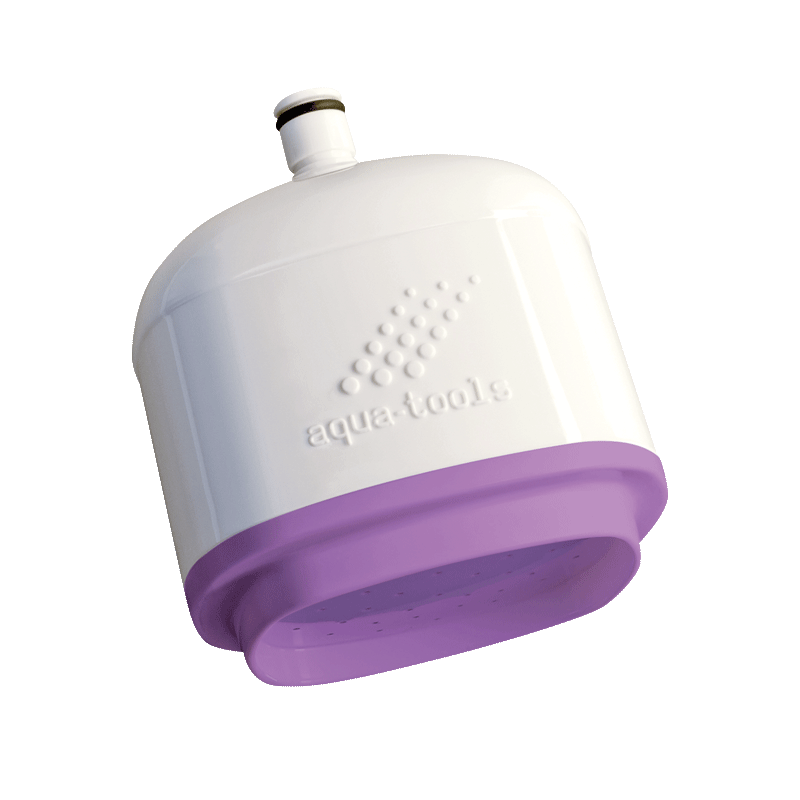

AQUATOOLS anti-Legionella and all-germ filter for fixed, wall-mounted showers (shower panels).
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 13.1 lpm at 3 bar and 3.9 lpm at 1 bar
(filter only, excludes any flow rate restriction in the shower).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 4 months from installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm
for 4 hours (cumulative total).
Non-sterile filter.
CE marked Class I medical device.
Packaged in boxes of 10.

ADVANTAGES

Anti-Legionella and all-germ

Lifespan: 4 months from installation

Bubl'air Wash

Bubl'air Wash: longer filter life

Maintenance aisée - Installation aisée

Rapid installation with no tools required

Characteristics

TECHNICAL CHARACTERISTICS

FILT’RAY wall-mounted fixed shower, 4 months

Ref. AT030742
Technology Point-of-use filtration

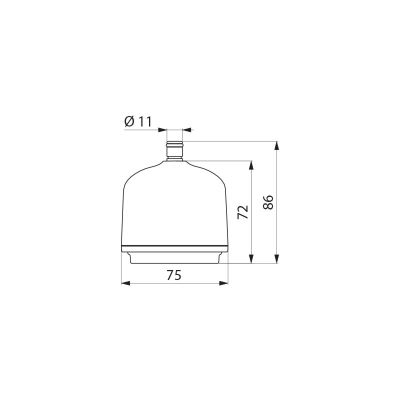

Height 72mm
Length 75mm
Flow rate 13.1 lpm at 3 bar and 3.9 lpm at 1 bar
Lifespan 4 months
Certificates ACS Logo CE Logo WRAS
