DESCRIPTION

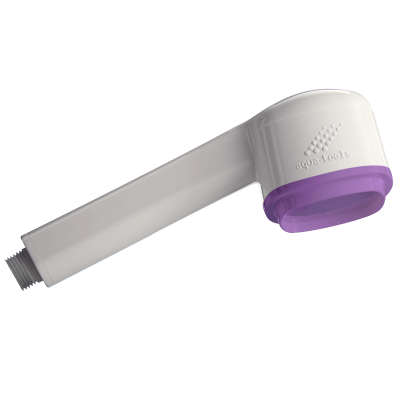

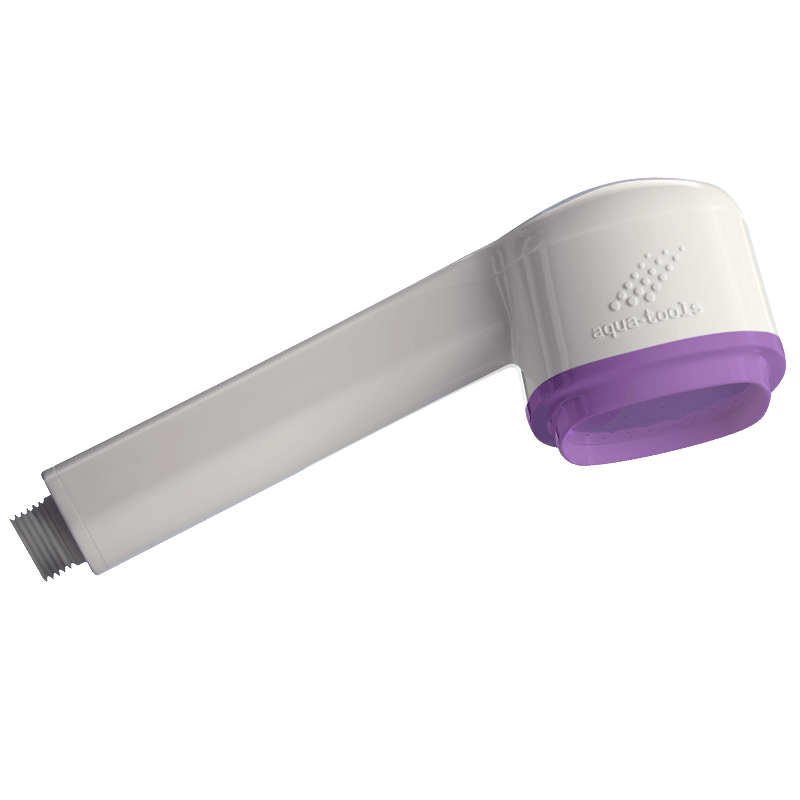

FILT’RAY 4-month shower head
Ref. AT030725AQUATOOLS anti-Legionella and all-germ shower filter.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 9 lpm at 3 bar and 6 lpm at 1 bar
(filter only, excludes any flow rate restriction in the shower).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 4 months from installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm for 4 hours (cumulative total).
Non-sterile filter.
CE marked Class I medical device.
Packaged in boxes of 10.
            Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 9 lpm at 3 bar and 6 lpm at 1 bar
(filter only, excludes any flow rate restriction in the shower).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 4 months from installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm for 4 hours (cumulative total).
Non-sterile filter.
CE marked Class I medical device.
Packaged in boxes of 10.
ADVANTAGES

Anti-Legionella and all-germ

Lifespan: 4 months from installation

Bubl'air Wash: extends filter life

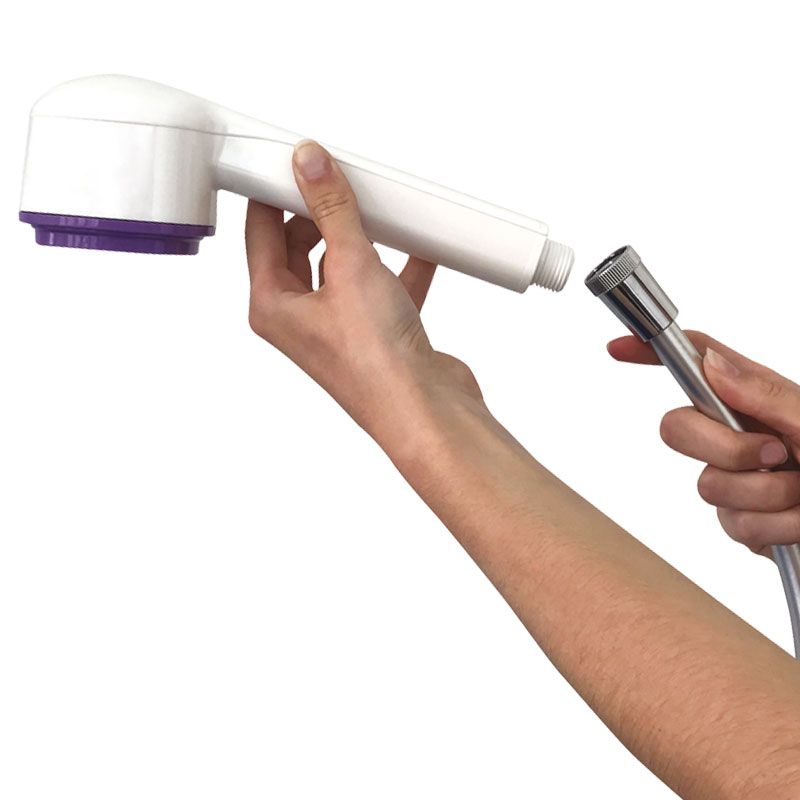

Installation rapide sans outil
TECHNICAL CHARACTERISTICS
FILT’RAY 4-month shower head

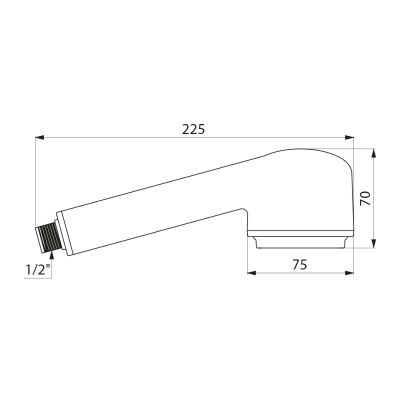

Ref. AT030725| Connector | M1/2" |
| Technology | Point-of-use filtration |
| Height | 70mm |
| Length | 225mm |
| Flow rate | 9 lpm at 3 bar and 6 lpm at 1 bar |
| Lifespan | 4 months |
| Certificates |       |
VARIANTS
| AT030716 | Shower flow |
|---|
VARIANTS
| AT030716 | Shower flow |
|---|
