DESCRIPTION

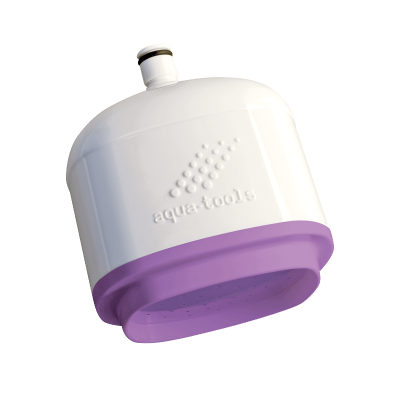

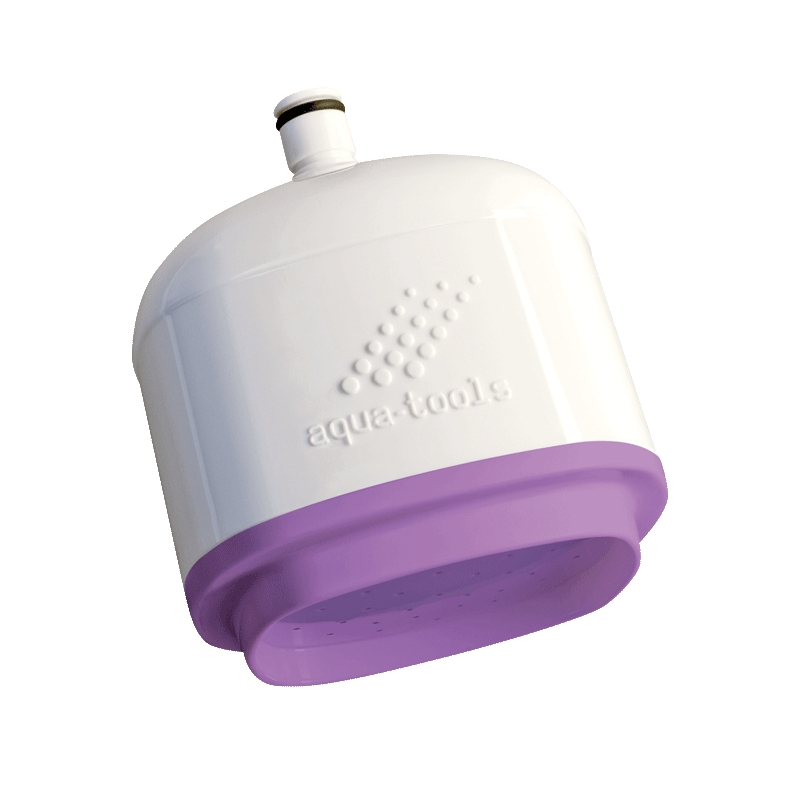

FILT’RAY 2G 2-month tap filter
Ref. AT030720AQUATOOLS anti-Legionella and all-germ tap filter, shower spray.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 6 lpm at 3 bar and 4 lpm at 1 bar
(filter only, excludes any flow rate restriction in the tap).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 2 months after installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm
for 2 hours (cumulative total).
Sterile filter.
FILT’RAY 2G sterile disposable water filters are:
CE marked Class I Medical Devices in Europe that comply with directive 93/42/CEE;
Class II Medical Devices in the U.S.A. with FDA-510(K) clearance;
Class I Medical Devices in Canada that comply with SOR/98-282.
Packaged in boxes of 10, each filter is individually wrapped and sterile.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 6 lpm at 3 bar and 4 lpm at 1 bar
(filter only, excludes any flow rate restriction in the tap).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 2 months after installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm
for 2 hours (cumulative total).
Sterile filter.
FILT’RAY 2G sterile disposable water filters are:
CE marked Class I Medical Devices in Europe that comply with directive 93/42/CEE;
Class II Medical Devices in the U.S.A. with FDA-510(K) clearance;
Class I Medical Devices in Canada that comply with SOR/98-282.
Packaged in boxes of 10, each filter is individually wrapped and sterile.
ADVANTAGES

Anti-Legionella and all-germ

Lifespan: 2 months after installation

Bubl'air Wash: longer filter life

Rapid installation with no tools required

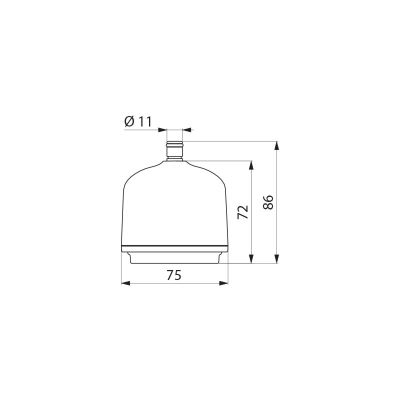

TECHNICAL CHARACTERISTICS
FILT’RAY 2G 2-month tap filter
Ref. AT030720| Technology | Point-of-use filtration |
| Height | 72mm |
| Length | 75mm |
| Flow rate | 6 lpm at 3 bar, 4 lpm at 1 bar |
| Lifespan | 2 months |
| Certificates |
|
VARIANTS
| AT030719 | Laminar flow | |
|---|---|---|
| AT030722 | Shower flow - Non-sterile | |
| AT030721 | Laminar flow - Non-sterile |
VARIANTS
| AT030719 | Laminar flow | |
|---|---|---|
| AT030722 | Shower flow - Non-sterile | |
| AT030721 | Laminar flow - Non-sterile |
