DESCRIPTION

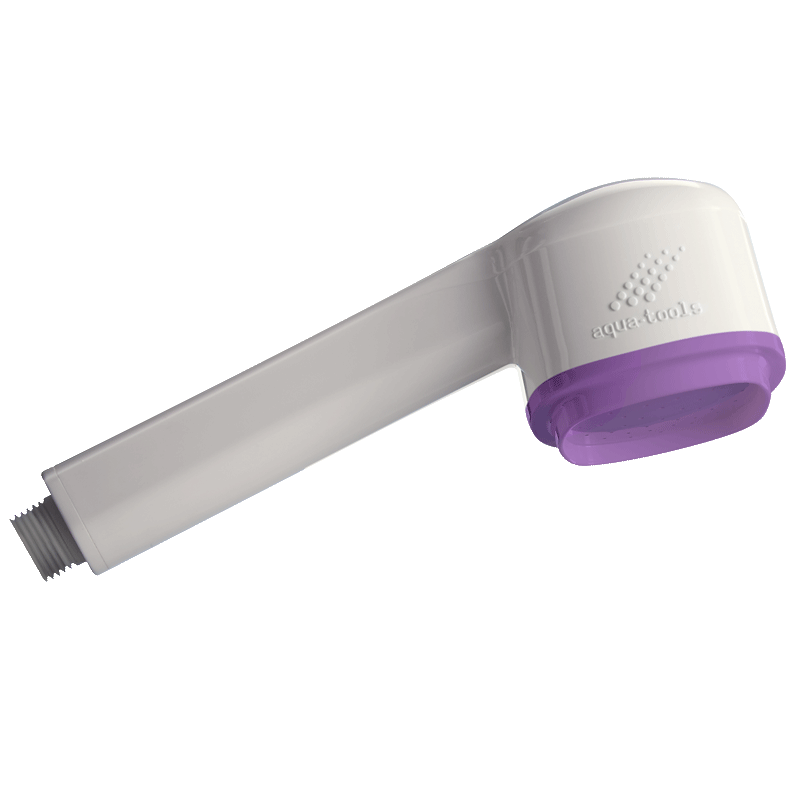

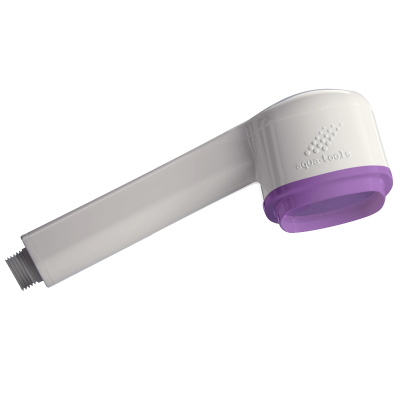

FILT’RAY 2-month shower head filter
Ref. AT030715AQUATOOLS anti-Legionella and all-germ shower filter.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 11.9 lpm at 3 bar and 4.5 lpm at 1 bar
(filter only, excludes any flow rate restriction in the shower).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 2 months after installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm
for 2 hours (cumulative total).
Non-sterile filter.
CE marked Class I medical device.
Packaged in boxes of 10.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 11.9 lpm at 3 bar and 4.5 lpm at 1 bar
(filter only, excludes any flow rate restriction in the shower).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 2 months after installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm
for 2 hours (cumulative total).
Non-sterile filter.
CE marked Class I medical device.
Packaged in boxes of 10.
ADVANTAGES
![](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/8/0/8/0/3020808-11-fre-FR/Picto_AntibactВrien.png)
Anti-Legionella and all-germ
![](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/2/9/7/0/3020792-11-fre-FR/Picto_Endurance-fiabilitВ.png)
Lifespan: 2 months from installation
![Bubl'air Wash](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/0/0/5/8/3078500-1-fre-FR/BublAirWash-WEB.png)
Bubl'air Wash: longer filter life
![Maintenance aisée - Installation aisée](https://www.aqua-tools.com/var/site/storage/images/_aliases/picto_65x65/6/1/8/0/3020816-16-fre-FR/InstallationRapideSansOutil-WEB.png)

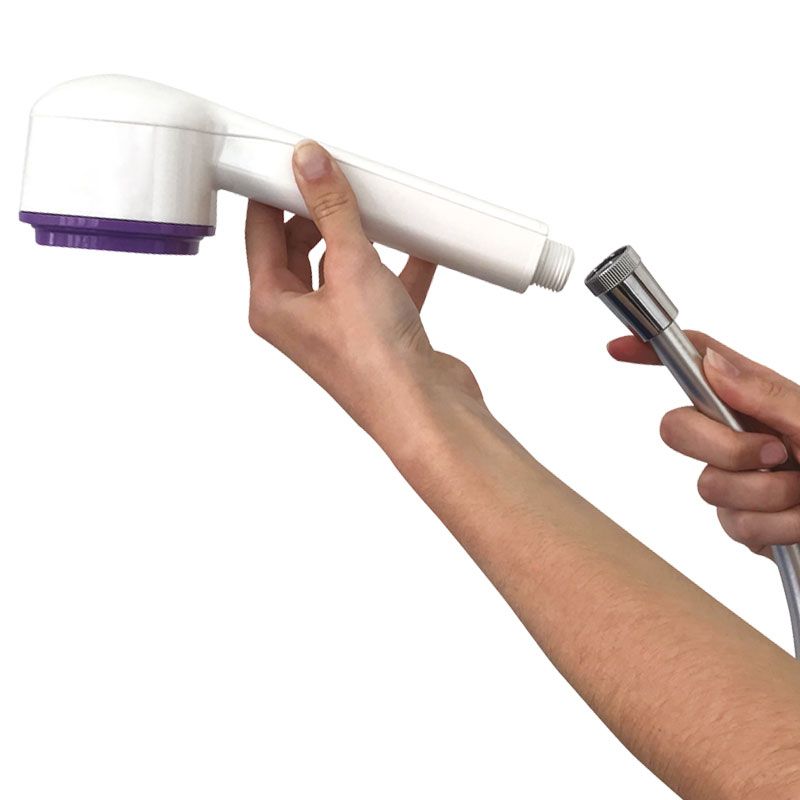

Rapid installation with no tools required

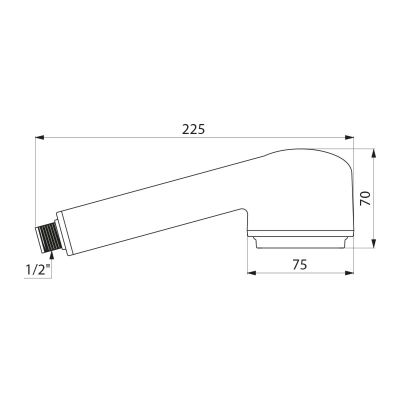

TECHNICAL CHARACTERISTICS
FILT’RAY 2-month shower head filter
Ref. AT030715Connector | M1/2" |
Technology | Point-of-use filtration |
Height | 70mm |
Length | 225mm |
Flow rate | 11.9 lpm at 3 bar, 4.5 lpm at 1 bar |
Lifespan | 2 months |
Certificates |
![]() ![]() ![]() |
VARIANTS
AT030713 | Shower flow |
---|
VARIANTS
AT030713 | Shower flow |
---|
